Vertical perimeter profile
Vertical perimeter profile

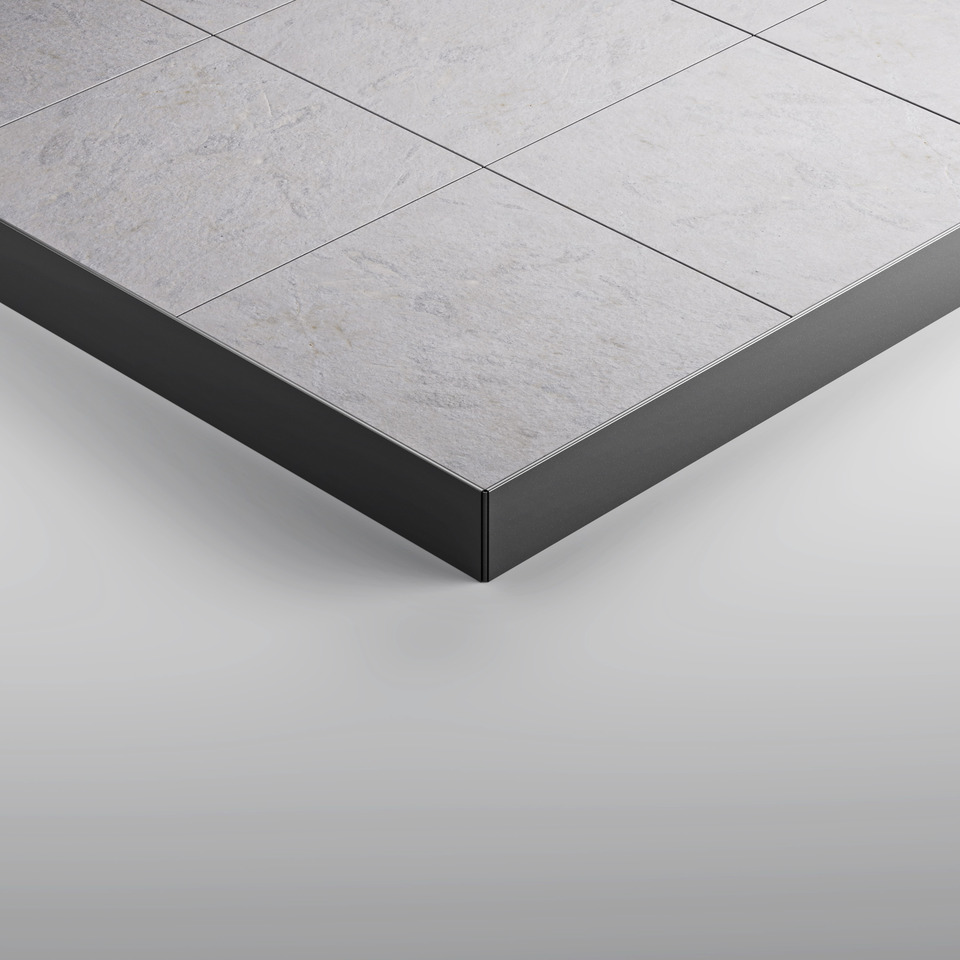

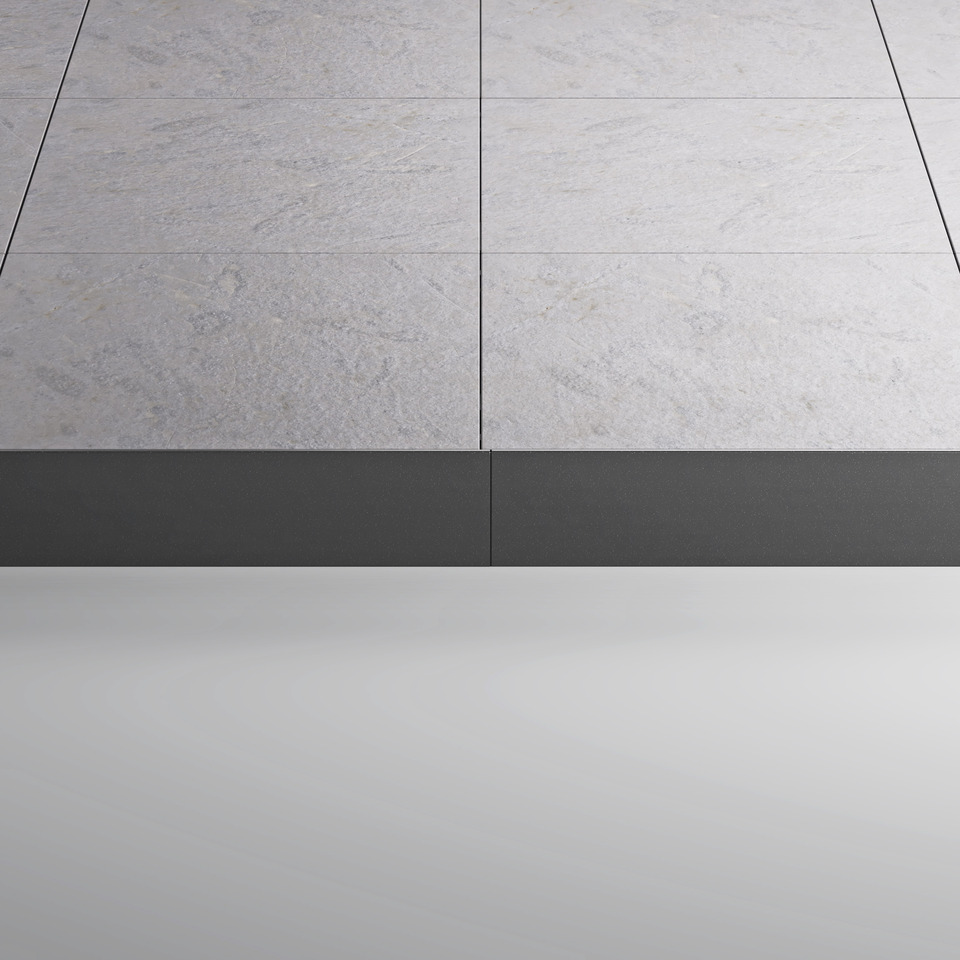

The Vertical perimeter profile is an element of closure and finishing of the perimeter edges in the external raised flooring, it adapts perfectly to the flooring slabs of 20 mm thickness and to the supports that act as a substructure.
It is a product that combines aesthetics with functionality and makes an outdoor flooring even more pleasant.
The profile is in aluminium and is available in two standard colours: silver and anthracite gray.
It is equipped with two important accessories that are the linear joint and the 90° angular joint, also in aluminium and with the same colours of the profile. The profile has a length of 2.40 meters while the standard heights are 30-60-90-120-150-180 mm.
QUICK and SIMPLE INSTALLATION to CREATE ELEGANT and CLASSY EDGES

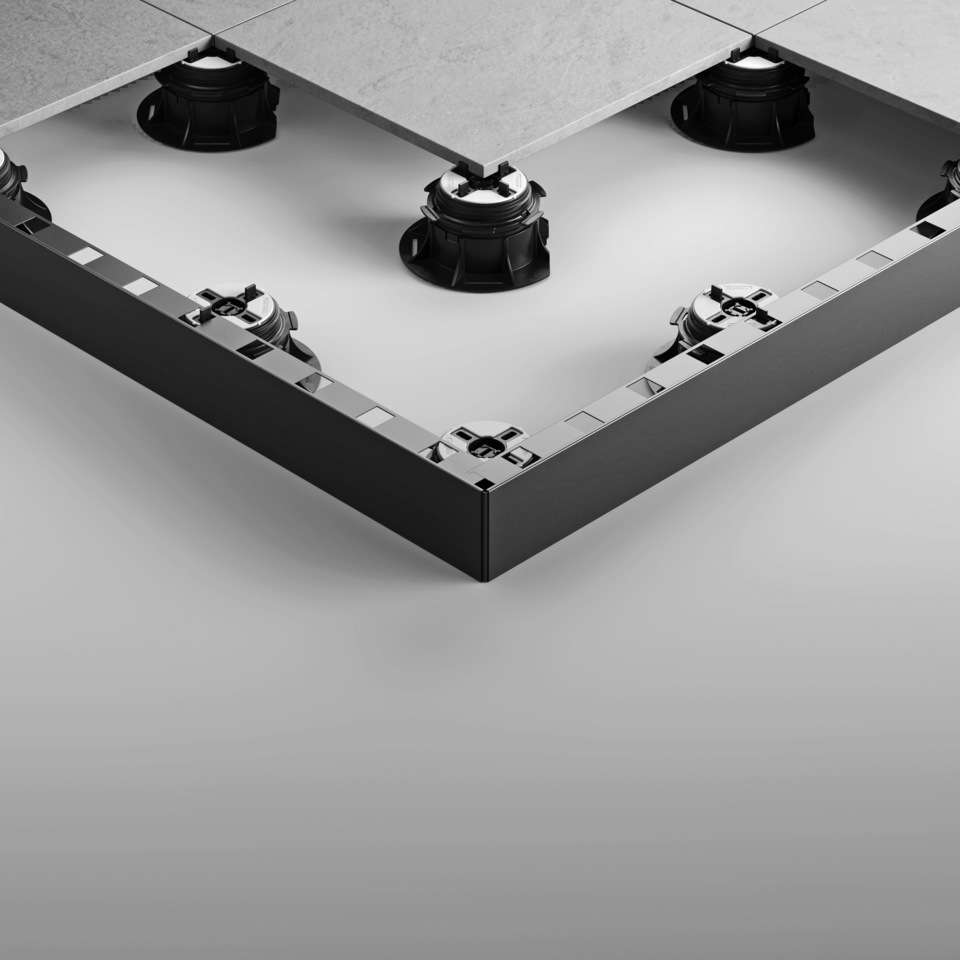

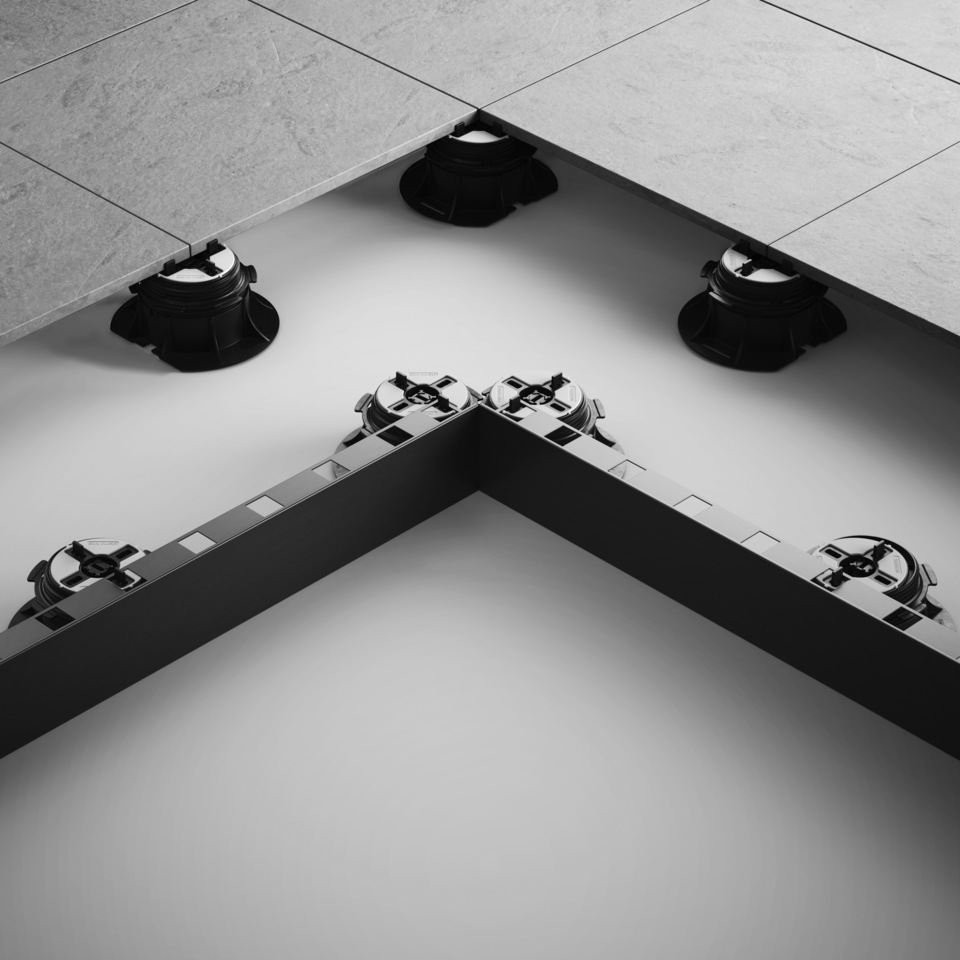

Easy and quick to install, simply place the side with the slits on the heads of the supports, pull together the profiles and insert the joints (linear and angular).
It fits perfectly into flooring slabs measuring di 600x600, 750x750, 800x800, 900x900, 400x800, 450x900, 300x1200, 400x1200, 600x1200, 1200x1200 mm.
Code | Type | Measure | Pcs (Per Box) |
---|---|---|---|
P021241030 | Vertical perimeter profile SILVER | H 30x L 2400 mm | 10 |
P021251030 | Vertical perimeter profile ANTHRACITE | H 30x L 2400 mm | 10 |
P021241060 | Vertical perimeter profile SILVER | H 60x L 2400 mm | 10 |
P021251060 | Vertical perimeter profile ANTHRACITE | H 60x L 2400 mm | 10 |
P021241090 | Vertical perimeter profile SILVER | H 90x L 2400 mm | 5 |
P021251090 | Vertical perimeter profile ANTHRACITE | H 90x L 2400 mm | 5 |
P021241120 | Vertical perimeter profile SILVER | H 120x L 2400 mm | 5 |
P021251120 | Vertical perimeter profile ANTHRACITE | H 120x L 2400 mm | 5 |
P021241150 | Vertical perimeter profile SILVER | H 150x L 2400 mm | 5 |
P021251150 | Vertical perimeter profile ANTHRACITE | H 150x L 2400 mm | 5 |
P021241180 | Vertical perimeter profile SILVER | H 180x L 2400 mm | 4 |
P021251180 | Vertical perimeter profile ANTHRACITE | H 180x L 2400 mm | 4 |
