Vertical angular lining clip

Discover all advantages Access to calculation software Request more info about the product

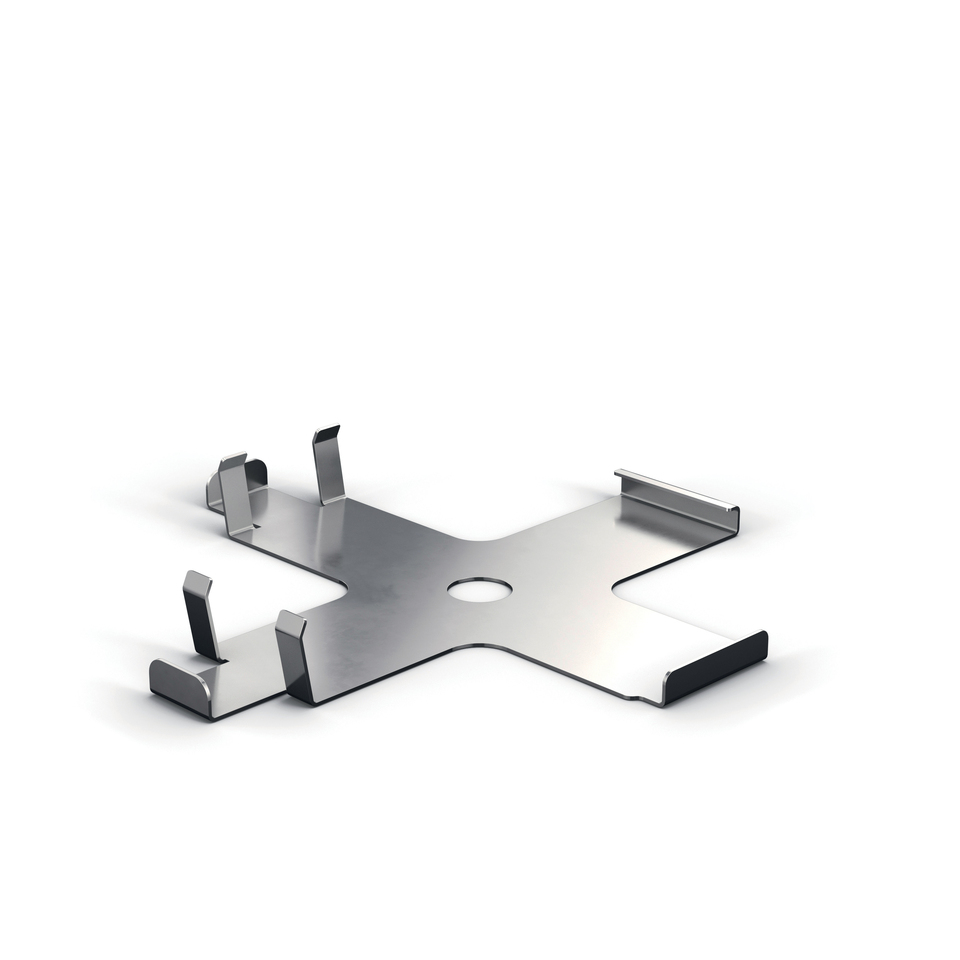

Vertical angular lining clip

This particular CLIP, both of the Head and of the Base, is used in the case of a vertical “corner” infill, instead of using two Head clips and two Base clips, a single Head clip and a single Base clip are used.

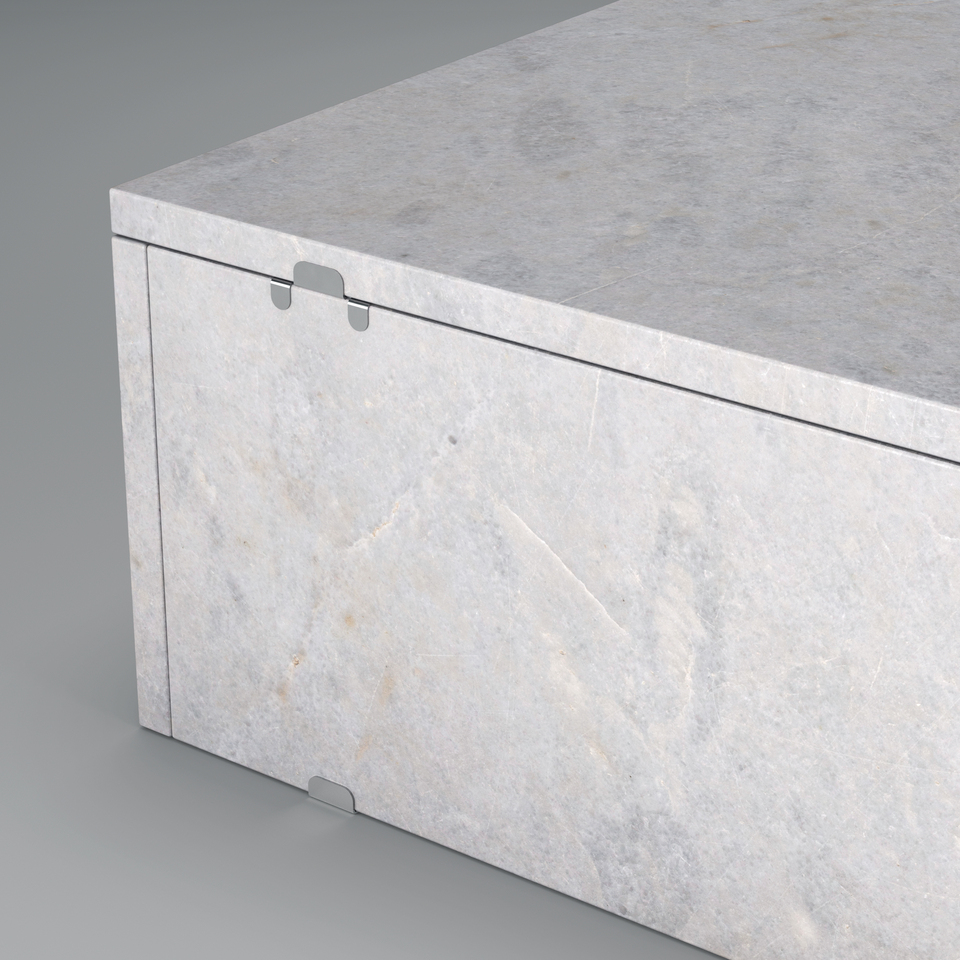

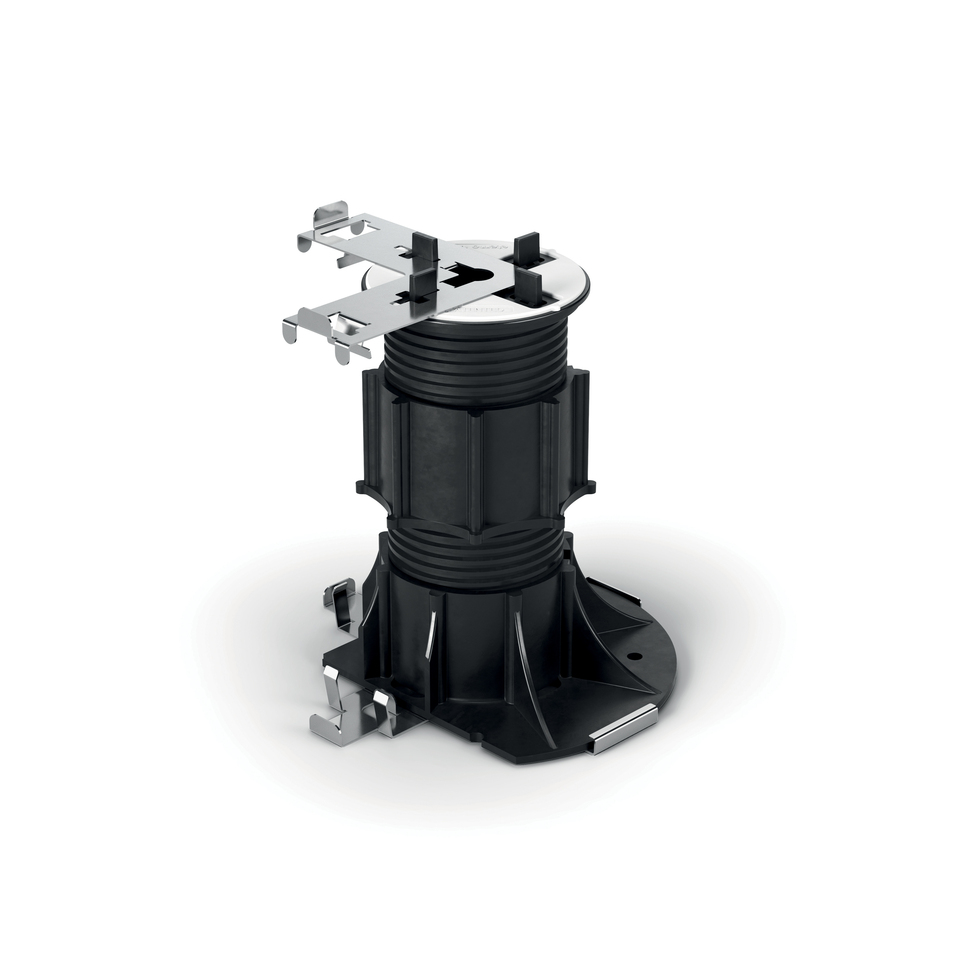

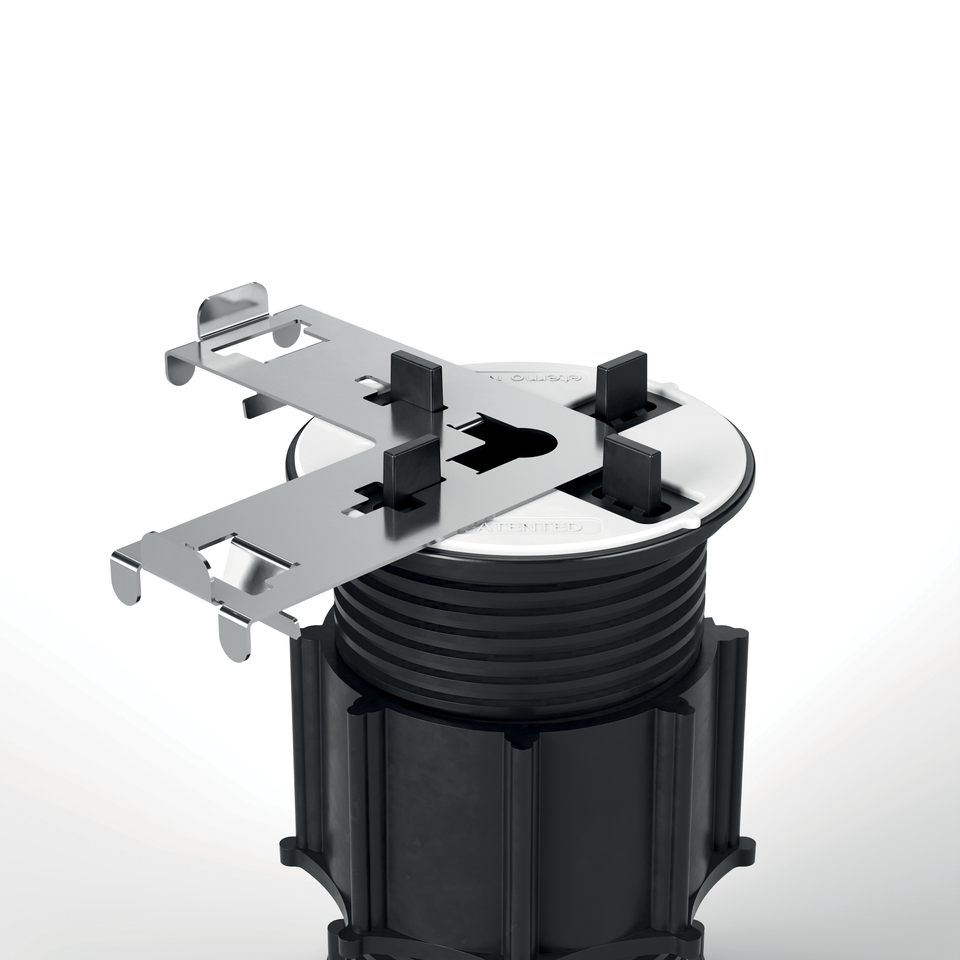

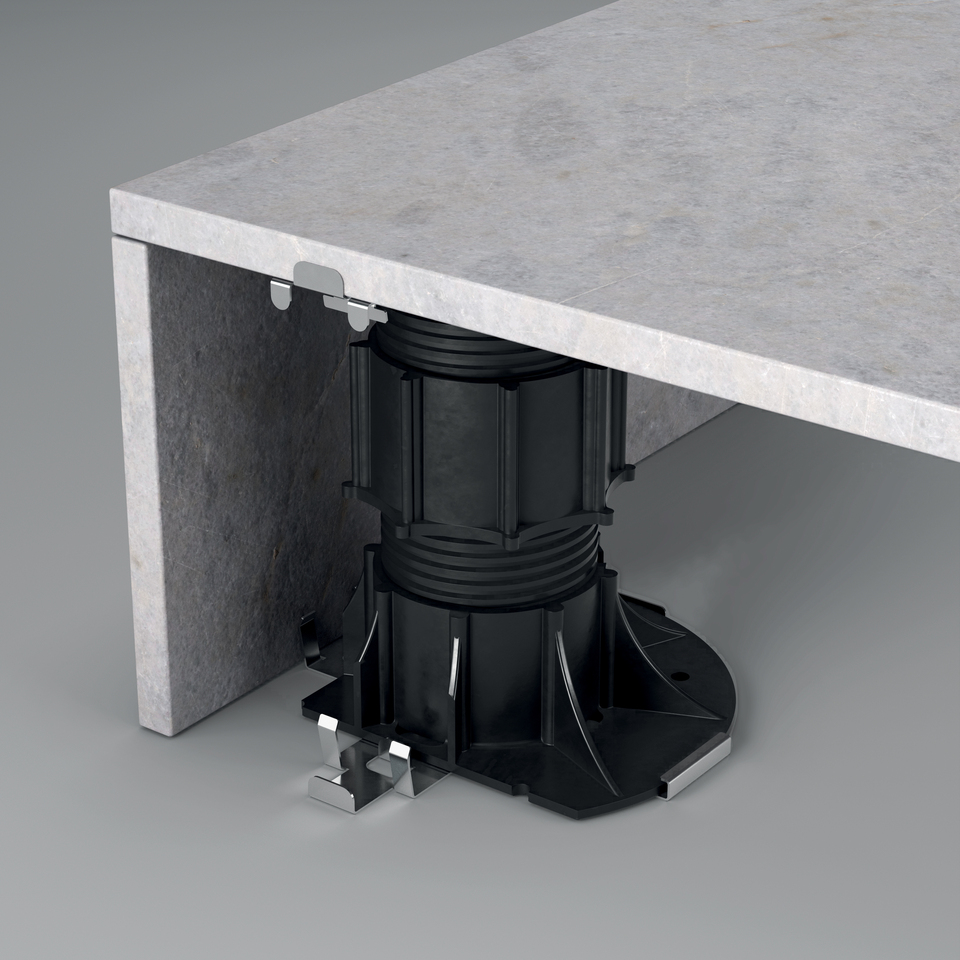

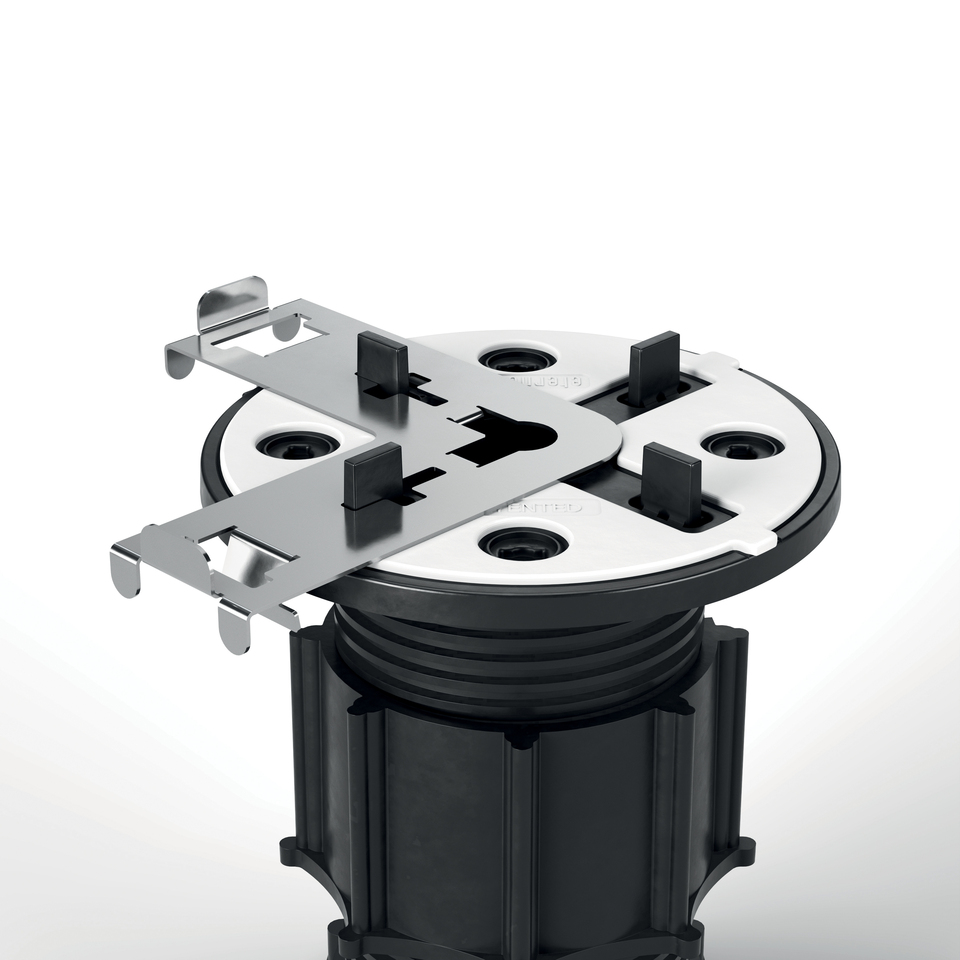

A solution consisting of two particular clips which, placed above the head and under the base of the support, specially cut at an angle, create a seat with mordants that fit the portion of the flooring trimmed to the extent of the space to be plugged. It is made of stainless steel, simple and quick to install. Thanks to this system it is also possible to create steps.

Compatible with SE - NM - SB - PR - SR/SRT supports.

Code	Type	Size	Pcs (Per Box)
P021000972	Angular head clip PR- SE - NM - SB	d. 110 mm supports' head	25
P021000982.N	Angular head clip PR - SR/SRT - SE - NM	d. 110/150 mm supports' head	25
P021000912	Angular base clip PR - SR/SRT - SE - NM - SB	d. 110/150 mm supports' head	25
P021000922	Angular base clip SE - NM	d. 150 mm supports' head	25
