Raised floor support EH20
Raised floor support EH20
The Raised floor support EH20 has always been the quickest and cheapest solution for installation of raised paver slabs.
In case of differences in level or imperfections of slabs, 4 exclusive balancers are provided for an automatic balancing of the paver.
Should a simple rubber shim be necessary, the LH3 leveling disc (3mm thick) is available and suitable to all supports. It can be placed either on top or under the support.

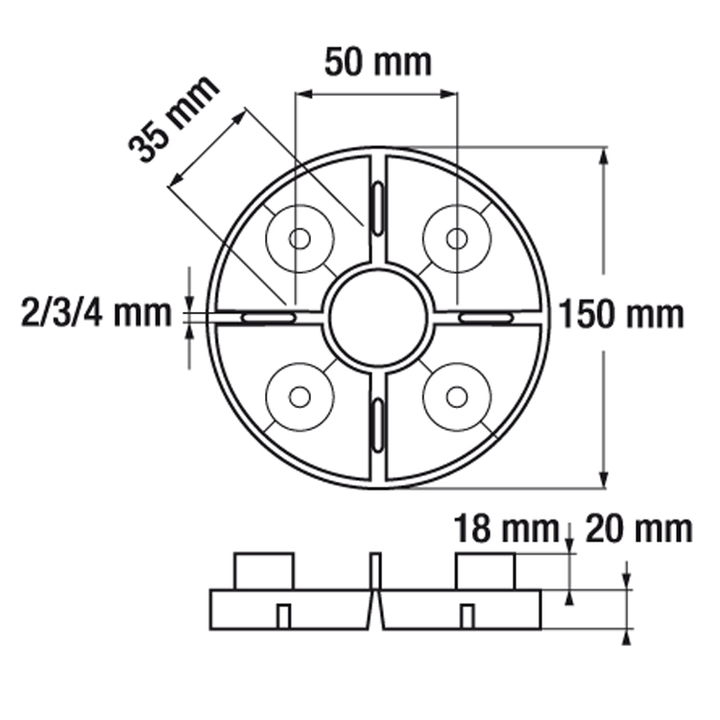

| Height |
20 mm |
|
Tabs’ thickness |
4 mm |
|
Tabs’ height |
18 mm |
Standard tabs are 4 mm thick H 18 mm. On request also 2 - 3 mm.
Codes refer to type with 4 mm thick tabs, H 18 mm
| Code | Type | Pcs (Box) | Pcs (Pallet) |
|---|---|---|---|
| E002020000 | Paver supports with fixed height | 150 | 3000 |
